Learn how to measure, anchor, level and seal an aluminium window for reliable operation, weather protection and lasting renovation results.
Correct aluminium window installation depends on accurate measurements, a stable frame, controlled fixing and continuous weather sealing. For renovation work in Spain or France, always confirm the current local requirements and the manufacturer’s instructions before starting.
1. Measure the opening accurately
Measure width and height at several points, checking both diagonals and the condition of the sill. Allow the installation joint specified by the window manufacturer; do not assume the opening is perfectly square. Remove loose material and repair weak masonry before positioning the frame.

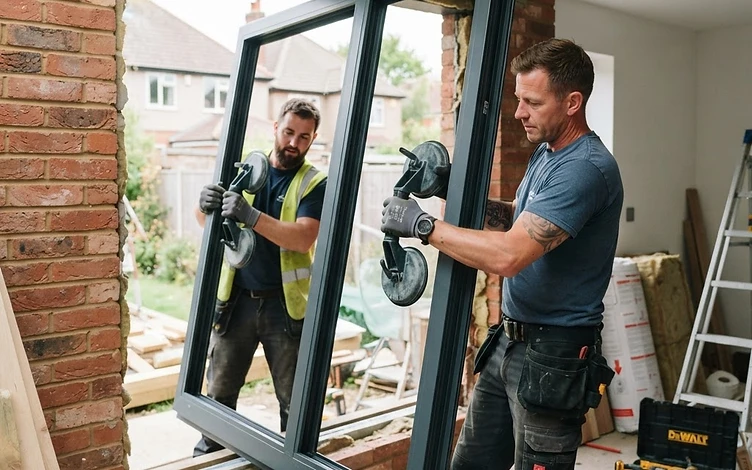

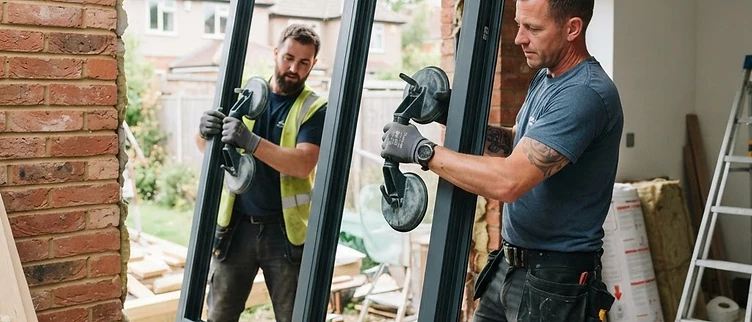

2. Handle and anchor the frame
| Stage | Good practice |
|---|---|
| Handling | Lift the frame with clean gloves, keep it supported and avoid pressure on corners, glazing beads or drainage paths. |
| Fixing | Use approved anchors or fixing screws at the manufacturer’s recommended points, with suitable packers and substrates. |
| Common mistakes | Do not drill through thermal-break elements, overtighten fixings, or rely on expanding foam as structural support. |
3. Level, seal and make final adjustments
Set the frame on load-bearing packers, then check plumb, level, diagonals and reveal position. Tighten fixings progressively without distorting the profiles. Protect the thermal break from drilling, crushing and excessive heat. Seal the perimeter in compatible layers: interior air control, insulated joint filling and exterior weather protection. Keep drainage channels open. After glazing or hanging the sash, adjust hinges, rollers, handles and locks, then test smooth operation and compression.
- Confirm opening dimensions, diagonals, sill strength and required installation gap.
- Prepare approved packers, anchors, sealants and tools before lifting the frame.
- Support the frame correctly and fix it without twisting or overtightening.
- Check level, plumb, diagonals, sash clearance and drainage paths.
- Protect the thermal break and seal the interior and exterior joints continuously.
- Perform a final operation, water-shedding and visual inspection.
Can expanding foam fix an aluminium window?+
How much installation gap is needed?+
Why does the sash rub after installation?+
Should I install the window myself?+
